Product Overview

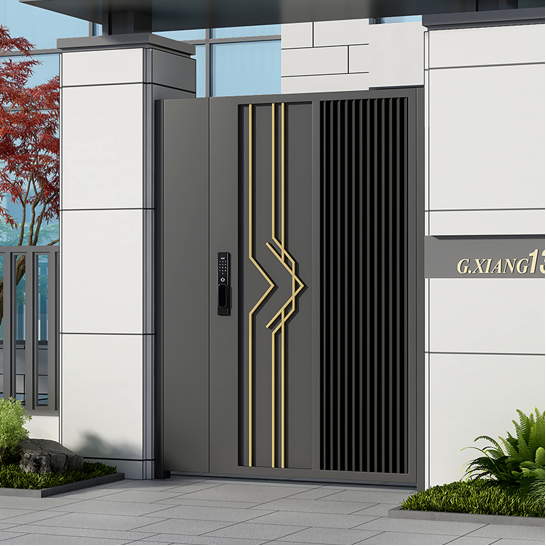

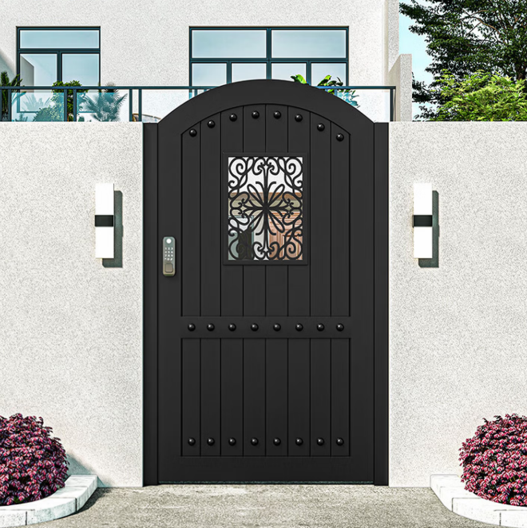

The aluminum outdoor entrance door is a protective and decorative integrated product specially designed for outdoor entrances of villas, residential communities, high-end clubs, etc. It uses high-strength aluminum alloy profiles as the main frame, integrates precise mechanical transmission system and safety glass (or grille) structure, and realizes "safety protection, space division, and decoration beautification" through opening methods such as sliding, pushing and pulling, and folding. The product combines the lightweight and high-strength characteristics of aluminum alloy material, as well as corrosion resistance and UV resistance. It is equipped with diversified surface treatment processes and customized design, which can resist outdoor weather erosion, prevent theft and pickpocketing, and form a harmonious unity with the courtyard landscape and architectural style. It is an ideal configuration for modern high-end courtyard entrances.
The aluminum outdoor entrance door breaks the pain points of traditional iron gate, which is heavy and prone to rust. Through structural optimization and material upgrading, it achieves "safety and aesthetics coexistence, practicality and durability balance", and is suitable for different courtyard entrance sizes and usage requirements, becoming the core building material for enhancing courtyard quality and living safety.
Core Structure and Material Selection
Overall Structure Design
The product adopts an "frame system - protective structure - mechanical transmission - sealing system - opening mechanism" integrated architecture. The structural design takes into account both outdoor durability and ease of use:
1. Frame System: The main frame uses 6063-T5 grade thickened aluminum alloy profiles, with a mortise and tenon joint + angle glue reinforcement process to ensure structural stability; the door frame wall thickness is ≥ 2.0mm, the door panel frame wall thickness is ≥ 2.5mm, and large door bodies adopt reinforcement design, with excellent anti-deformation ability, verticality and levelness deviation ≤ 2mm/m; the frame interior is a multi-chamber structure to enhance insulation performance and mechanical stability, and is suitable for outdoor temperature changes.
2. Protective Structure: Supports two core configurations to meet different protection needs:
- Glass Type: Standard configuration includes double-layer laminated tempered glass (5+0.76PVB+5mm) or double-layer laminated glass (5+12A+5+0.76PVB+5mm), with no splash risk after glass breakage and excellent impact resistance; the glass and profile are sealed with butyl glue + weather-resistant silicone glue double layer, moisture-proof and anti-fog, suitable for humid outdoor environments.

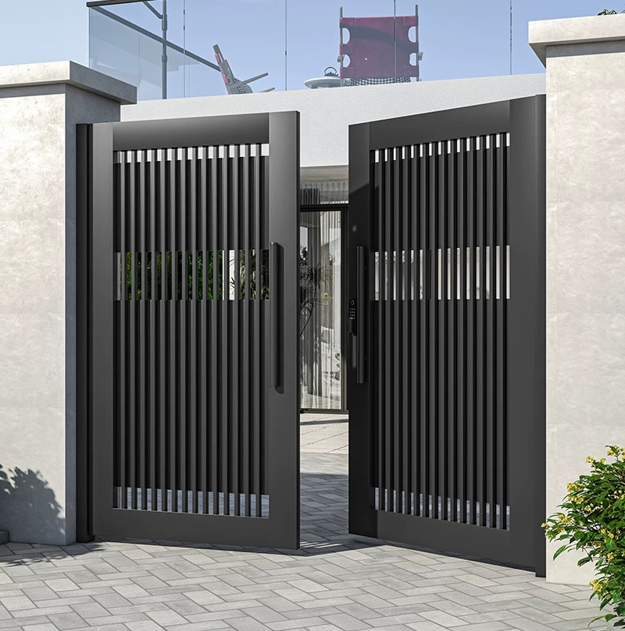

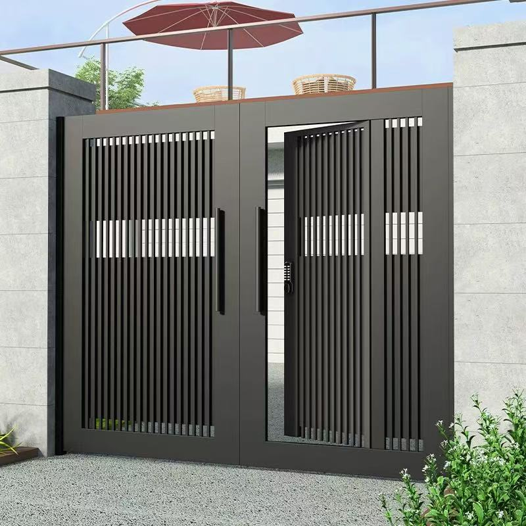

- Grille Type: Uses an aluminum alloy one-piece formed grille, with a spacing ≤ 100mm, grille wall thickness ≥ 2.0mm, customizable Chinese, European, modern patterns, with both protection and decoration functions, no glass breakage Hazard， and easier maintenance.
3. Mechanical Transmission System： Core uses outdoor-specific heavy-duty mechanical parts to ensure durability and safety：
- Hinges/Sliders： Sliding type products are equipped with stainless steel heavy-duty hinges， single page load capacity ≥ 80kg， opening angle 0°-90°， flexible and smooth without jamming； push-pull/folding type uses nylon + stainless steel double wheel structure， single wheel load capacity ≥ 50kg， sliding resistance ≤ 8N， service life ≥ 30，000 times， track internal dust-proof and sand-proof design.
- Lock System： Equipped with multi-point linkage anti-theft lock (≥ 3 lock points)， lock core adopts C-level anti-theft standard， anti-pickpocketing and drilling； optional fingerprint lock， password lock， remote control lock， supporting remote unlocking and status monitoring， suitable for intelligent security needs.
- Auxiliary Accessories： Installation anti-slip device， anti-collision rubber block， door closer (or ground spring)， ensuring the door body is closed tightly， without collision noise， and preventing accidental detachment.
4. Sealing System： Uses EPDM (triple rubber) weather-resistant sealing strips， Shore hardness 55-65 degrees， wide temperature range -40℃~120℃， excellent anti-aging and anti-tear performance； the door panel and door frame， door panel and ground form multiple sealing， effectively blocking dust， rain and noise infiltration； bottom configuration of adjustable sealing guard， suitable for different ground flatness.

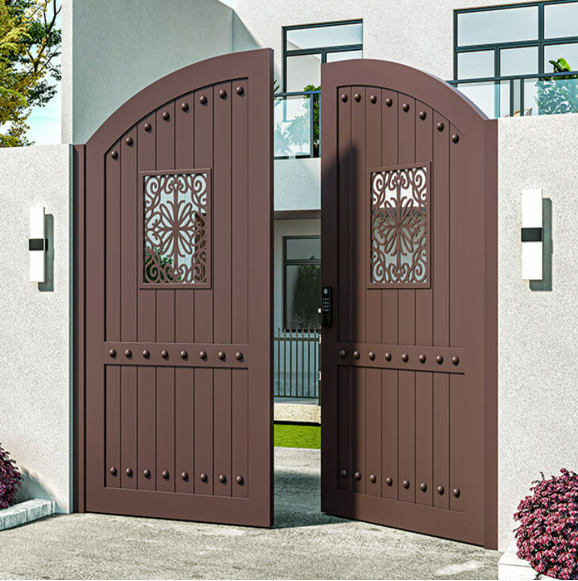

5. Opening Mechanism： Supports three mainstream opening methods， suitable for different courtyard entrance scenarios： - Sliding type: Single opening or double opening design, opening angle ≤ 90°, after closing, the lock is firmly secured, suitable for small and medium-sized courtyard entrances (width ≤ 3000mm).
- Pulling type: Single rail or double rail structure, the door panel slides horizontally for opening, not occupying the space on both sides, suitable for large-span entrances (width ≤ 6000mm).
- Folding type: Multi-panel interlocking folding design, after opening, it can be retracted to one side, with a passage width of over 90%, suitable for extremely wide courtyard entrances (width ≤ 8000mm).
Components Material Requirements Execution Standard
Aluminum alloy profiles 6063-T5 grade, oxide film thickness ≥ 12μm, coating adhesion ≥ 2 grade GB/T 5237—2017
Glass Laminated tempered glass in accordance with GB 15763.3, dew point of insulating glass ≤ -40℃ GB/T 11944—2012
Sealing strips EPDM type, tensile strength ≥ 12MPa, compression permanent deformation ≤ 15% GB/T 14683—2017
Hardware components Stainless steel 304/316 material, salt spray test ≥ 72 hours, opening times ≥ 30,000 times GB/T 24601—2009
Surface coating Powder spraying: weather resistance ≥ 1000 hours; fluorocarbon spraying: weather resistance ≥ 2000 hours GB/T 5237.4—2017
Core performance parameters/Basic performance indicators/Performance category Index parameters
Wind pressure resistance performance Grade ≥ 5 (wind pressure value ≥ 2.0kPa), customizable up to grade 7 (≥ 3.0kPa)
Water tightness performance Grade ≥ 3 (leakage pressure ≥ 500Pa), no visible leakage
Air tightness performance Grade ≥ 4 (air infiltration per unit seam length ≤ 1.5m³/(m·h))
Sound insulation performance Glass type weighted sound insulation ≥ 32dB, grille type ≥ 25dB
Anti-theft performance Grade ≥ B, pick-up time ≥ 15 minutes, lock point anti-damage performance meets the standard
Corrosion resistance performance Neutral salt spray test ≥ 72 hours, no rust, peeling, or detachment
Service life Normal outdoor use ≥ 25 years, coating without obvious fading or cracking
Installation and maintenance specifications
Installation requirements
1. Before installation, it is necessary to check the size of the opening and the specifications of the door body to ensure that the verticality and flatness deviation of the opening is ≤ 5mm, and the reserved installation gap is 25-30mm; the foundation needs to be reinforced with concrete (thickness ≥ 150mm) to ensure the bearing capacity of the door body and avoid settlement deformation.
2. Door frame fixation uses expansion bolts or pre-buried iron pieces, spacing ≤ 500mm, firmly connected to the foundation/wall; the gap between the door frame and the wall/ground is filled with polyurethane foam, and the outside is applied with weatherproof sealant to ensure sealing and waterproofing, preventing water penetration.
3. The installation position of hardware components is accurate, fixed firmly, the hinges/sliders need to be adjusted to be flexible and smooth in rotation; the lock system needs to be repeatedly tested to ensure tight locking and convenient unlocking; for electric models, the power connection needs to be correct, the motor operation and remote control function need to be debugged to ensure coordinated movement.
4. After installation, opening and closing tests, water spraying tests and anti-theft tests need to be conducted, checking for no jamming, leakage, abnormal noise, and normal lock function before acceptance.
Daily maintenance
1. Avoid sharp objects from hitting or scratching the profiles and glass (or grilles). Do not drill or cut holes on the door body to prevent damage to the structure and anti-corrosion coating.
2. Clean the surface of the door body regularly (every six months). Use a damp cloth to wipe the profiles, glass and tracks. Do not use strong acid or alkali cleaners. If there are any debris (such as stones or fallen leaves) inside the tracks, remove them promptly to ensure smooth sliding.
3. Regularly (once a year) add lubricating oil to the hardware components (it is recommended to use silicone oil or lithium-based lubricating grease) to keep the opening flexible. The lock core can be regularly coated with graphite powder to improve the smoothness of unlocking. If the sealing rubber strips become aged or cracked, replace them in time.
4. For electric models, regularly check the motor, wiring and remote control device to keep them dry and clean. Avoid moisture-induced short circuits. Open and close the door several times each month to ensure the motor operates normally. When not in use for a long time, it is recommended to disconnect the power supply and take protective measures.
5. After winter snow and ice weather, promptly remove the snow and ice from the door body and tracks to prevent ice formation from affecting the opening. Avoid hitting the ice layer with hard objects to prevent damage to the door body and glass.
Specification and size range
- Single door size: Width 800mm - 1500mm, Height 2000mm - 3000mm;
- Total width range: Sliding type ≤ 3000mm (single opening) / 6000mm (double opening), Pull-out type ≤ 6000mm, Folding type ≤ 8000mm;
- Single door weight: ≤ 120kg (compatible with regular hardware), Heavy-duty hardware system can be upgraded for overweight door bodies;
- Surface treatment: Supports powder coating (conventional colors: black, gray, brown), Fluorocarbon coating (custom colors), Wood grain transfer (imitation redwood, teak, etc.);
- Custom options: Can be equipped with carvings, hollowing, LOGOs, lighting systems. For glass models, you can choose frosted, ice flower, embossed and other processes.
Scope of Application
- Civilian scenarios: Entrance courtyards, garden-style villas, high-end residences' side doors, rear garden gates, etc.;
- Commercial scenarios: Entrance gates, partition doors of high-end clubs, homestay estates, golf courses, resorts, etc.;
- Special scenarios: Outdoor entrances around cultural relics buildings, characteristic towns, high-end parks, etc., which have high requirements for decorative effect and weather resistance.
Product Core Advantages
1. Superb Weather Resistance and Durability: The surface of the aluminum alloy profiles is treated with multiple anti-corrosion processes, and is equipped with 304/316 stainless steel hardware. It is completely immune to outdoor wind, rain, humidity, and ultraviolet radiation, and will not rust, fade, or crack. Its service life is 2-3 times that of traditional iron gates, eliminating the need for frequent maintenance.
2. Enhanced Safety Protection: Thickened profile frame + multi-point interlocking anti-theft lock + laminated tempered glass (or solid grille), forming a triple protection system, providing excellent impact resistance and anti-pickpocketing performance; anti-loosening devices and anti-collision design prevent accidental detachment and collision damage, ensuring the safety of the courtyard.
3. Extremely Decorative: Supports diversified surface treatments and customized designs, which can match different courtyard styles such as Chinese, European, modern, and pastoral;Carving patterns, hollowing out、wood grain transfer and other techniques enhance the aesthetic quality， becoming the visual focus of the courtyard entrance and highlighting the high-end quality.
4. Convenient and Effortless Operation： The heavy-duty hardware transmission system is ingeniously designed， with the sliding type opening being lightweight， the push-pull/folding type sliding smoothly without any jamming or abnormal noise； optional electric opening system (remote control， sensing， mobile APP control) is available， suitable for large-sized and heavy door bodies， and can be easily operated by the elderly and children.
5. Energy-saving and Environmentally Friendly： The multi-chamber profile and sealing rubber strip combination effectively block outside noise and dust， creating a quiet and tidy courtyard environment； the glass type has certain heat insulation performance， reducing the exchange of heat between indoors and outdoors， and lowering energy consumption； the bottom adjustable sealing gasket can adapt to different ground conditions， providing better sealing effect.
6. Wide Applicability： Can be customized for opening methods， dimensions， colors， and patterns according to courtyard entrance size， style requirements， suitable for villa courtyards， residential communities， high-end clubs， guesthouses， and other scenarios， serving as both a protective door and an important part of the courtyard landscape.
FAQ：
1. Which is more durable, the aluminum patio door or the iron-wrought patio door?
The aluminum patio door is more durable. The aluminum profiles are treated with anti-corrosion coating, which is resistant to outdoor wind, rain, humidity, and ultraviolet rays. It won't rust or fade, and can last for over 25 years. The iron-wrought door is prone to rust and corrosion, and requires regular painting maintenance. Its lifespan is shorter, and it is heavy, so it is prone to door frame deformation over time.
2. Which opening methods are suitable for aluminum patio doors? How to choose for different house types?
The mainstream opening methods include sliding, push-pull, and folding. For small-sized courtyard entrances (width ≤ 3m), choose the sliding type, which is convenient to operate and doesn't occupy space; for medium-sized entrances (3m - 6m), choose the push-pull type, suitable for scenarios with no extra space on both sides; for super-wide entrances (6m - 8m), choose the folding type, which can maximize the passage width and is suitable for villas and manors, etc., large house types.
3. How is the anti-theft performance of the aluminum patio door? How to enhance the anti-theft level?
Qualified products have excellent anti-theft performance. The standard configuration includes thickened profiles + multi-point linkage C-level anti-theft lock + laminated tempered glass (or solid grille). The anti-picking time is ≥ 15 minutes. To enhance the anti-theft level, you can add smart locks (Fingerprint / Password /remote unlocking)， anti-picking alarm devices， and for grille models， you can reduce the grille spacing (≤ 80mm) to prevent climbing.
4. Will the aluminum patio door fade or deform in outdoor use?
The surface of high-quality aluminum patio doors is treated with powder coating or fluorocarbon coating， which has strong weather resistance. Under normal outdoor use for 10 - 15 years， there will be no significant fading. The profile wall thickness is ≥ 2.0mm and has an enhanced reinforcement design， making it strong against wind and pressure. As long as it is installed firmly， it won't deform due to temperature differences or external forces.
5. Are the hardware components of the aluminum patio door prone to failure？ What should be noted when using outdoors?
Choose 304/316 stainless steel heavy-duty hardware components. The salt spray test is ≥ 72 hours， which is corrosion-resistant and has strong load-bearing capacity. Under normal use， the lifespan can reach 10 - 15 years. When using outdoors， it is necessary to regularly (once a year) add lubricating oil to the hinges and pulleys to prevent sand and debris from entering the track； the lock core should be regularly coated with graphite powder to keep the unlocking smooth.
6. Can the aluminum patio door be customized with patterns， colors， and sizes?
Yes， it can be customized. It supports powder coating (conventional black， gray， brown)， fluorocarbon coating (custom colors)， wood grain transfer (imitating redwood， teak)， etc. as surface processes； patterns can be customized as Chinese-style carvings， European-style hollowing， modern minimalist grilles， etc.； the size can be non-standardly customized according to the width and height of the courtyard entrance， and the maximum can be an 8m-wide folding door.
7. How is the sealing effect of the aluminum patio door？ Will it leak air or rain?
It uses EPDM (triple rubber) weather-resistant sealing strips， combined with adjustable bottom sealing strips. The sealing effect is good， and under normal use， it won't leak air or rain. If there is leakage， it is mostly due to aging of the sealing strips or cracking of the sealing rubber during installation. Replacing the rubber strips and applying weather-resistant glue can solve the problem.
8. Can the aluminum patio door be equipped with smart devices？ What are the common smart configurations?
Yes， it can be equipped. Common smart configurations include smart locks (Fingerprint / Password /APP remote control)， wind and rain sensor automatic opening， anti-picking alarm system， door access camera， etc. Some electric models can also be linked with smart home devices to achieve scene linkage such as automatic lighting when opening the door and closing the window.
9. What should be noted during daily maintenance of the aluminum patio door？ How often should it be maintained?
Just wipe the surface of the door body with a damp cloth. Avoid using strong acid and strong alkali cleaning agents. Clean the track debris (stones， fallen leaves， etc.) once every six months. Add lubricating oil to the hardware components once a year and check if the sealing strips are aging. Electric models should be opened once a month to avoid the motor getting damp due to long-term idleness.
10. Is it suitable to install aluminum patio doors in coastal areas？ What special treatments are needed?
It is very suitable. The coastal areas have high humidity and heavy salt content. The corrosion resistance of aluminum alloy is much better than that of iron. Special treatment options include fluorocarbon spraying technology (which offers stronger salt spray resistance), 316 stainless steel hardware accessories. During installation, weather-resistant sealant should be used to fill the gap between the door frame and the wall. Regularly rinse the surface of the door with clean water to remove salt and prevent corrosion.
